WS-尾纤单PIN探测器
Applications Analog Optical Receiver CATV & CDMA Test Equipment
Performance Characteristics
High responsivity, low return loss
Low dark current, low capacitance
Planar incident structure
High reliability and long operation life
尾纤单pin探测器英文(1).pdf

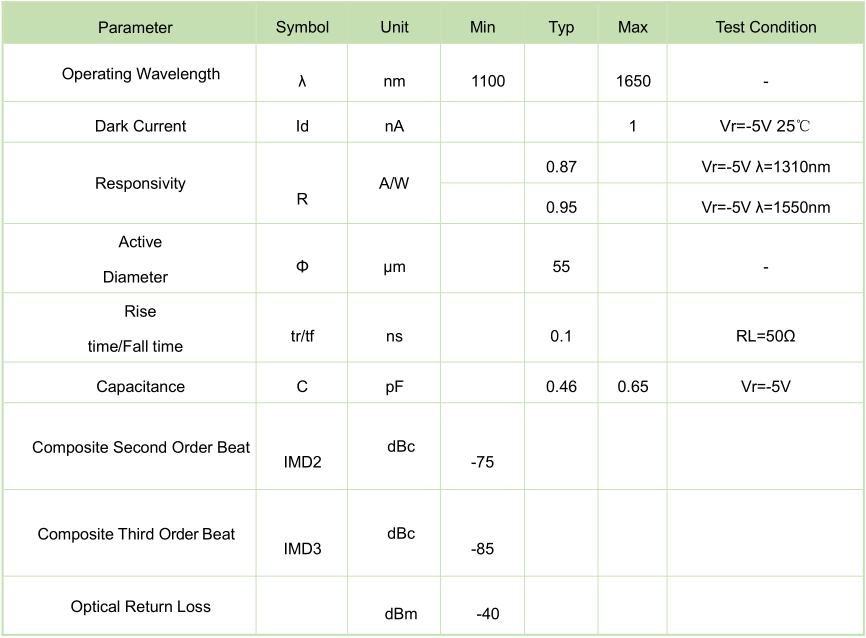

Optical and Electrical Characteristics(T=25℃)

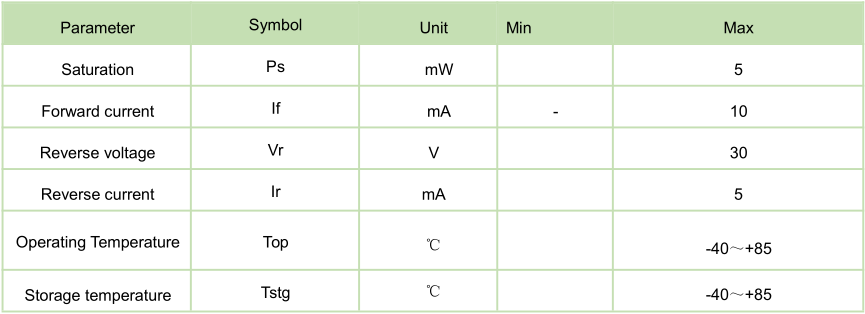

Absolute Maximum Ratings(Tc=25℃)
